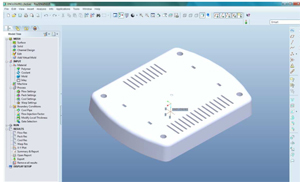

Simpoe Pro Molding Analysis Software

PRODUCT DETAILS: Simpoe Pro Molding Analysis Software, , plastic product design, software design company, product development services, product development companies, website software development, prototyping services, industrial design companies, software development company, product design firm, product development software, product development firm, product design consultants, product design prototype, softwares, mechanical product development, custom application development, product design & development, product development design, autocad 2009, how to make a prototype, industrial design firm,
→ Input/Output formats:
CAD: Same as Pro/ENGINEER, Parasolid, STEP, IGES, CADAM
etc… Automatic Meshing
FEM: ABAQUS, Nastran, Mesh Quality Control Tools
→ Integrated Material Data Base
Built-in and User-defined
→ Geometry Type
_ Surface: Mid-Surface Model
_ Shell3D: Solid Shell Model
_Solid3D: Solid Model
→ Result Parameters:
_ Temperature distribution
_ Pressure distribution
_ Volume Shrinkage
_ Shear Stress
_ Shear Rate
_ Fill Animation
_ Warpage & Shrinkage Deflection
_ Fiber Orientation
_ Cooling Time
_ Weld Lines
_ Air Traps
_ Sink Marks
→Basic Parameters
_Plastic Materials: Built-in and customizable plastic materials data bank
_Injection process controlling parameters: Flow rate or Time control, Resin melt and mold wall temperatures.
Injection press maximum pressure & maximum flow rate
_Definitions of injection gates: runners and cooling channels
_Co-Injection, Fibers, Muti-Domains, Inserts
→ Automatic Report Generation
with HTML, PPT and Word Formats.
→ Integrated Surface and Volume
Meshers
→ Editor for Runner and Cooling
Channels
→ Unit System: S.I-metric and BTU
→ System Requirements:
_ MS Windows XP / Vista / 7
_ Pro/ENGINEER active license
_ 2 GB RAM or more
_ Intel Core2Duo or more
_ 32 or 64 bit
_ 1 GB Hard Disk
_ Mouse & Keyboard



 PRODUCT SPECIFICATIONS:
→ Packing Parameters
_ Filling/Packing analysis switch
_ Pressure holding time (absolute or relative profile)
_ Fiber percentage
_ Co-injection, Gas and Water Assisted Injection
→ Cooling Parameters
_ Thermal regulation parameters:
Built-in and customizable mold material library (
aluminum, copper and steel alloys) and coolant
fluid library (oil, water…).
Melt temperature
Coolant temperature
Mold opening time
Ejection temperature
Mold surfaces temperatures
_Cooling channels and runners built-in editor :
Geometry, diameters and meshing.
Coolant temperature and flow rate .
→ Warp Parameters
_ Warpage simulation parameters :
Ambient temperature
Gravity
→ Cooling Results
_ Thermal regulation:
Part cooling time
Part temperature at end of cooling.
Mold temperature
Mold heat transfer flux.
→Warp Results
_Warpage :
X,Y and Z warpage displacements ( absolute
and user defined reference frames)
Resulting displacement and superposition on
original part.
Warpage measurement between two userdefined
nodes.
Sink Marks values.
Deformed & Counter-deformed geometry
output file.
Deformed geometry output file: STL, Nastran
& Abaqus file formats.
Thermal
